Self Clinching Standoffs: Ideal for Thin Metal Sheets

Self Clinching Standoffs are an essential fastening solution used in a variety of industries, particularly where there is a need to secure components to thin sheet metals. They are designed to create a strong, permanent connection without the need for threading or welding, making them a cost-effective and efficient option for manufacturers and engineers. One key factor that determines the suitability of Self Clinching Standoffs is the thickness of the metal sheet they are intended to be used with. In this article, we'll explore the optimal thickness range for Self Clinching Standoffs and why they are best suited for thin metal sheets.

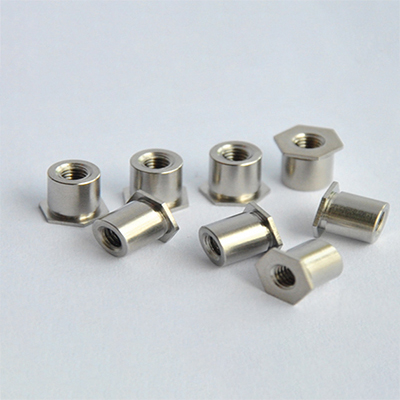

What is a Self Clinching Standoff?

A Self Clinching Standoff is a fastener designed to be inserted into a pre-drilled hole in thin sheet metal. Once inserted, pressure is applied to the standoff using specialized tools, which causes the fastener to embed securely into the metal. The result is a strong, permanent connection that can withstand mechanical forces like torque, vibration, and tension, making it ideal for applications where reliability and stability are critical.

Unlike traditional threaded fasteners, Self Clinching Standoffs do not require the metal sheet to be pre-threaded. This makes installation much faster and simpler, as the metal sheet does not need additional preparation or post-installation processes. They also help save valuable space due to their compact design, which is crucial in industries where space is limited.

Ideal Metal Sheet Thickness for Self Clinching Standoffs

The key advantage of Self Clinching Standoffs lies in their ability to create a tight, secure connection with thin sheet metals. Typically, these fasteners are best suited for materials ranging from 0.5mm to 3mm in thickness. This range covers most common sheet metal materials used in the electronics, automotive, aerospace, and telecommunications industries.

Here’s why these thickness ranges are ideal:

1.Optimal Engagement:Self Clinching Standoffs are designed to work by embedding their clinching features into the metal, forming a mechanical lock that holds the fastener in place. For this locking mechanism to work effectively, the sheet metal must be thick enough to allow for the formation of a secure clinch but thin enough to ensure the standoff can embed deeply enough. Metal sheets with a thickness between 0.5mm and 3mm are ideal for this engagement.

2.Prevention of Material Deformation:If the metal sheet is too thick, there is a risk that the Self Clinching Standoff may not be able to properly embed into the material, resulting in a weak or loose connection. On the other hand, if the sheet is too thin, it may deform or crack during the installation process. A 0.5mm to 3mm thickness range provides the perfect balance, allowing the fastener to securely anchor without damaging the material.

3.Space Efficiency:Thin sheet metals are commonly used in applications where space is at a premium. Self Clinching Standoffs, with their small, compact design, can be used to create secure connections in tight spaces, which is essential in industries like electronics, where components are densely packed.

Challenges with Thicker Metal Sheets

While Self Clinching Standoffs excel with thinner materials, they may not be the best solution for thicker metal sheets. For materials thicker than 3mm, alternative fastening solutions may be required for several reasons:

1.Difficulty in Clinching:For thicker materials, the clinching mechanism may not work effectively, as the standoff may not be able to embed deeply enough into the metal to form a secure lock. In such cases, the standoff may fail to create a permanent connection, or the metal sheet may suffer damage during installation.

2.Increased Installation Pressure:Installing Self Clinching Standoffs into thick metal sheets requires significantly more force. This could lead to issues with consistency in the clinching process or the need for specialized tools, which increases both installation time and costs.

3.Need for Threaded Fasteners:For thicker sheets, traditional threaded fasteners like bolts or screws are often a better solution. These fasteners can provide secure connections in thicker materials and allow for adjustments, disassembly, or reassembly if needed.

Alternatives for Thicker Sheets

For metal sheets thicker than 3mm, alternative fastening methods may be more appropriate. Some of these include:

1.Rivets: Rivets are often used for thicker materials where a permanent connection is required. They are inserted into a pre-drilled hole and deformed to create a strong, permanent connection.

2.Bolts and Nuts: For applications where disassembly may be necessary, bolts and nuts are ideal. They allow for easy assembly and removal of components.

3.Welding: For heavy-duty applications that require permanent bonding between metal components, welding can be used. It provides a strong and durable connection, although it is more labor-intensive than Self Clinching Standoffs.

Self Clinching Standoffs are the ideal solution for applications involving thin sheet metals, typically ranging from 0.5mm to 3mm in thickness. Their efficient, easy-to-install design makes them perfect for industries like electronics, automotive, and aerospace, where space-saving and secure fastening are crucial. However, for thicker metal sheets, alternative fasteners like rivets, bolts, or welding methods may be necessary to ensure a secure connection.
