How to use Self Clinching Nuts?

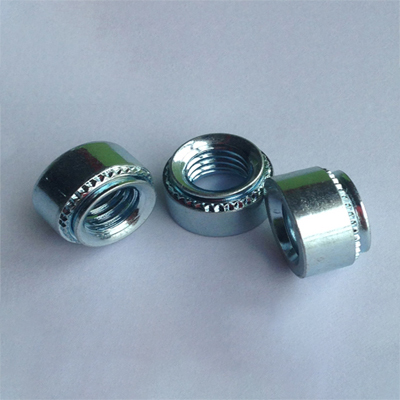

Self-Clinching Nuts are fasteners designed to be permanently installed in metal sheets. They have a specially designed shape and feature a self-clinching mechanism that enables them to be securely and reliably mounted in thin materials without the need for additional hardware or tools. These nuts create a strong threaded connection, allowing other components or fasteners to be attached to the metal sheet. Self-clinching nuts are commonly used in industries such as electronics, automotive, aerospace, and sheet metal fabrication.To use self-clinching nuts, follow these steps:

1. Choose the appropriate self-clinching nut: There are various types and sizes of self-clinching nuts available in the market. Select the nut that matches the application requirements in terms of thread size, thickness, and material.

2. Prepare the installation surface: Ensure that the installation surface is clean, smooth, and free from any debris or contaminants. This will help to ensure a proper and secure installation.

3. Determine the installation location: Mark the desired location on the workpiece where the self-clinching nut will be installed. Double-check the placement to ensure it aligns with the intended design or purpose.

4. Insert the self-clinching nut: Place the self-clinching nut into the pre-drilled or properly-sized hole on the workpiece. Make sure the nut is inserted with the threaded side facing outwards.

5. Apply pressure: Use a press or squeeze mechanism to apply even pressure to the top of the self-clinching nut. The pressure should be sufficient enough to embed the nut into the material, creating a secure and permanent installation.

6. Check the installation: Verify that the self-clinching nut is properly seated and flush with the surface of the workpiece. Ensure that the threads are aligned correctly for use with mating hardware or components.

7. Inspect and test: Once the self-clinching nut is installed, visually inspect the joint to ensure it is secure and free from any visible defects or misalignments. Conduct a test to check the nut's stability and resistance to movement or rotation.

It is important to refer to the manufacturer's guidelines and specifications for proper installation techniques and precautions specific to the type of self-clinching nut being used. Adhering to these guidelines will ensure optimal performance and reliability of the self-clinching nut within the intended application.
